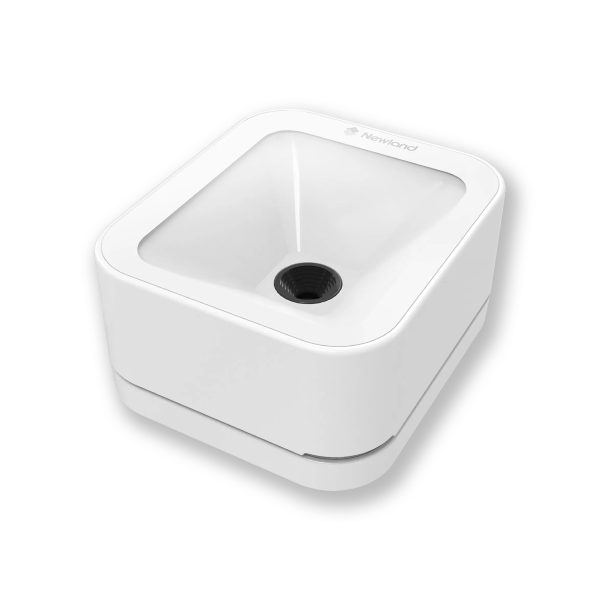

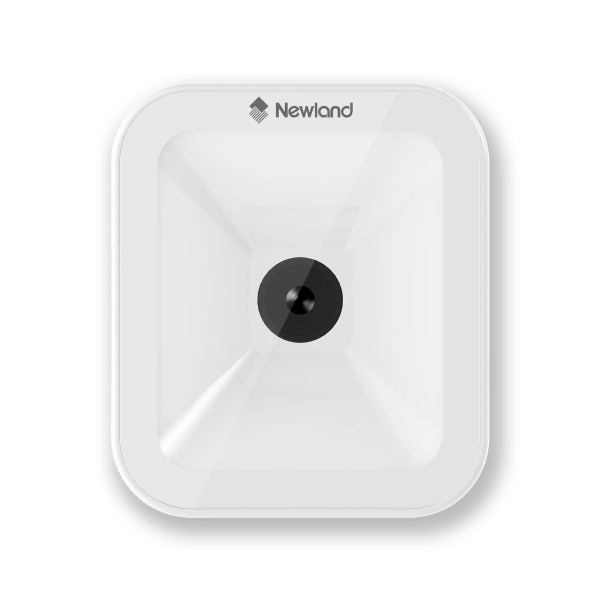

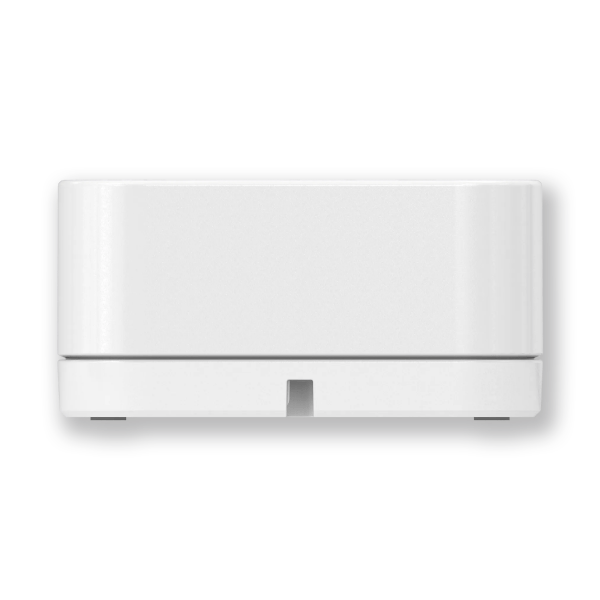

NEWLAND FR27 Desktop Scanner

₹95,000.00

  • 640 * 480 CMOS
  • Min. Contrast 30%
  • QUICK TO SWITCH MODE
  • White LED, IP42
  • 5 mil @ PCS=90%
Add to Wishlist
Add to Compare
Share it:

  • Snappy On-screen Barcode Capture

Optimized for digital barcode reading, this CPU-based scanner is capable of reading 1D as well as high-volume 2D barcodes on a screen covered with protective film.

  • Space-saving Scanner

Thanks to its lightweight, compact design, FR27 can be conveniently positioned on a small narrow desk, a store shelf or at customer retail points where counter space is at a premium.

  • Superior Motion Tolerance

Exceptional motion tolerance (2.7m/s) and large FOV (horizontal 68°, vertical 51°) enhance user experience.

  • World-leading UIMG® Technology

Armed with Newland’s latest-generation UIMG® technology, FR27 can decode even poorer quality barcodes, such as soiled or wrinkled labels, with ease.

Specifications
Performance
 Image Sensor 640 * 480 CMOS
Illumination White LED
Symbologies QR Code, Micro QR Code, PDF 417, Micro PDF 417, Data Matrix, Aztec, Maxicode, GM Code, Chinese Sensible Code, GM Code, Code One. EAN-8, EAN-13, UPC-E, UPC-A, Code 128, Coupon, UCC/EAN128, Interleaved 2 of 5, Febraban, ITF-14, ITF-6, Matrix 2 of 5, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, AIM 128, ISBT 128, Code 49, Code 16K. USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX Post, Australian Postal.
Resolution ≥5mil
Typical Depth of Field 20mm-105mm (13mil) 30mm-40mm (6.7mil) 30mm-45mm (10mil) 0mm-85mm (15mil)
Scan Angle Roll: 360°, Pitch: ±75°, Skew: ±75°
Min. Symbol Contrast 20%
Scan Mode Sense mode, Continuous mode
Motion Tolerance 2.7m/s
Field of View Horizontal 68°, Vertical 51°, Diagonal 84.8°
Physical
 Dimensions (L×W×H) 66.3(W) ×76.3(D) ×38(H) mm (max.)
Weight 120g
Operating Voltage 5VDC±5%
Rated Power Consumption 698mW (typical)
Current@5VDC 140mA (typical) 100mA (typical)
Interfaces USB
Environmental
 Operating Temperature -20°C to 60°C (-4°F to 140°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5% to 95% (non-condensing)
ESD ±12 KV (air discharge); ±8 KV (direct discharge)
Drop 1.5m
Sealing IP42
Ambient Light 0~100,000lux (natural light)
Certifications
 Certificates & Protection VCCI, RoHS, CE, FCC
