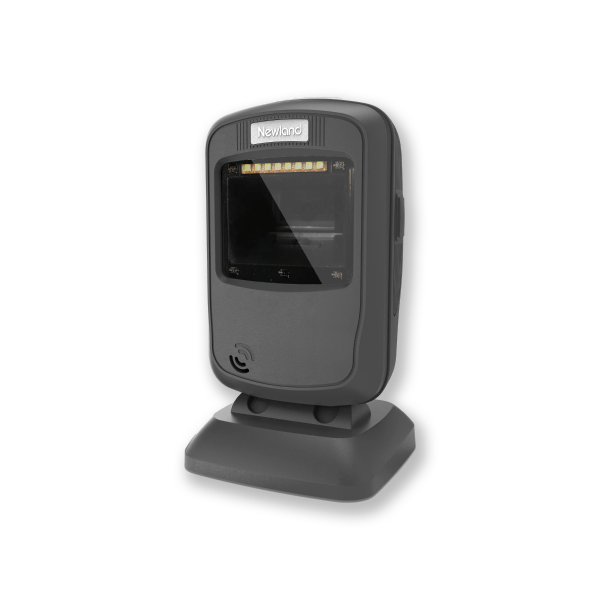

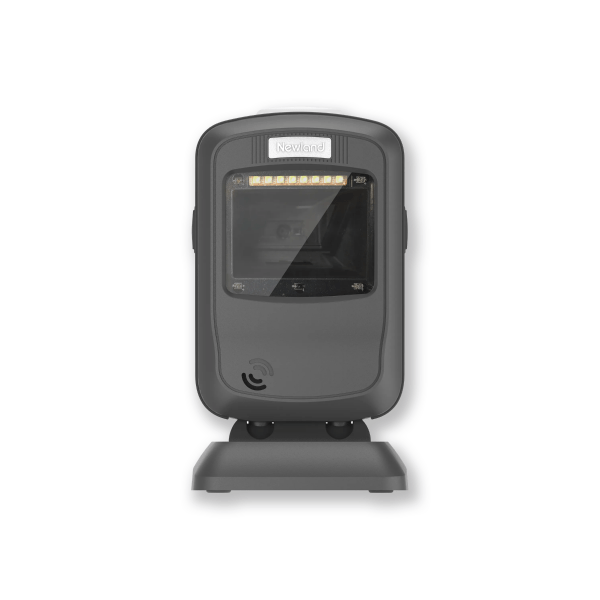

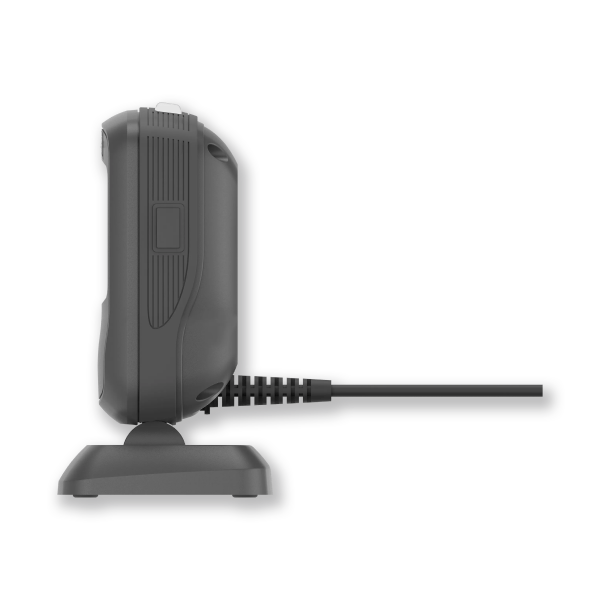

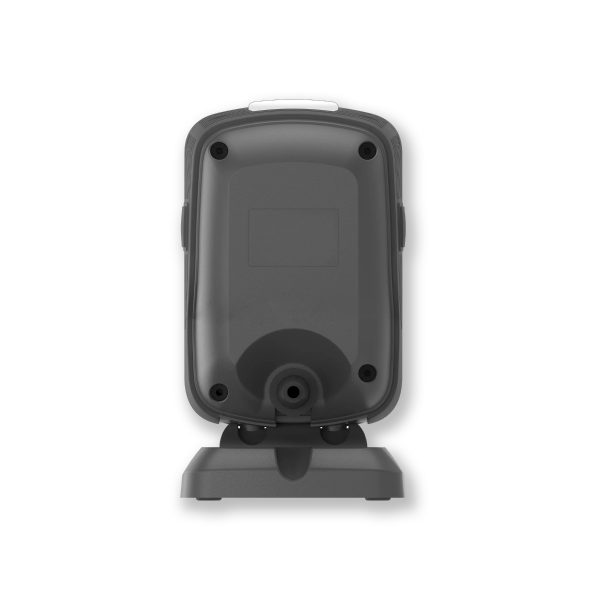

NEWLAND FR40 Desktop Scanner

Original price was: ₹14,590.00.Current price is: ₹6,439.00.

  • 1280×800 CMOS
  • Min. Contrast 25%
  • QUICK TO SWITCH MODE
  • White LED, IP52
  • 3 mil @ PCS=90%
Add to Wishlist
Add to Compare
Share it:

  • 1.2m Drop Resistance

The scanner withstands multiple 1.2m drops to concrete (for six sides, one drop per side).

  • IP52-rated Sealing

An IP52-rated seal protects the scanner against the ingress of dust, water and other contaminants

  • IR Trigger

The IR sensor in the scanner enables speedy capture of barcodes presented to it, markedly increasing throughput and productivity.

  • Quick to Switch Mode

The Switch at the top of the scanner allows users to swiftly toggle between the Normal mode and High Motion Tolerance mode.

  • Snappy On-screen Barcode Capture

Armed with Newland’s sixth-generation of UIMG® technology, this CPU-based scanner is capable of reading 1D as well as high-volume 2D barcodes on a screen covered with protective film.

  • Superior Motion Tolerance

Exceptional motion tolerance (2.5m/s) and large FOV (horizontal 51°, vertical 32°) enhance user experience.

Specifications
Performance
 Image Sensor 1280×800 CMOS
Illumination White LED
Symbologies PDF417, Data Matrix, QR Code, Micro QR Code, Aztec, etc. EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc.
Resolution ≥3mil
Typical Depth of Field 10-210mm (13mil) 10-180mm (15mil)
Scan Angle Pitch: ±50°, Roll: 360°, Skew: ±45°
Min. Symbol Contrast 25%
Motion Tolerance 2.5m/s
Field of View Horizontal 51°, Vertical 32°
Physical
 Dimensions (L×W×H) 83(W)×81(D)×148(H)mm
Weight 293g
Notification Beep, LED
Operating Voltage 5VDC±5%
Current@5VDC 219mA (typical)
Interfaces RS-232, USB
Rated Power Consumption 1041mW (typical)
Environmental
 Operating Temperature -20°C to 60°C (-4°F to 140°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5%~95% (non-condensing)
ESD ±14 KV (air discharge); ±8 KV (direct discharge)
Drop 1.2m drops to concrete (for six sides, one drop per side)
Sealing IP52
Certifications
 Certificates & Protection FCC Part15 Class B, CE EMC Class B, RoHS
