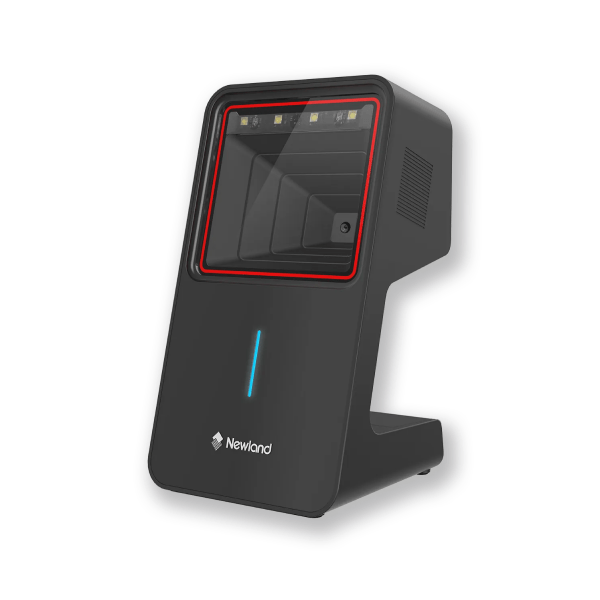

NEWLAND FR42-BT BluetoothDesktop Scanner

Original price was: ₹23,000.00.Current price is: ₹12,579.00.

  • 1080*1280 CMOS
  • Min. Contrast 25%
  • QUICK TO SWITCH MODE
  • White LED, IP52
  • 3 mil @ PCS=90%
Add to Wishlist
Add to Compare
Share it:

  • Durable Construction

The FR42-BT, built into an IP52-sealed and drop resistant (1.5m) housing with no moving parts fortifies itself inside and out, is suitable for the tough outdoor environments.

  • New Generation Product in Simple Appearance

The first wireless desktop products by Newland whose integrated structure design can be placed on the desktop to scan the code without holding it, and it can also be flexibly grasped on both sides.

  • No Fear of Power off

The battery can be replaced easily and charged respectively.

  • Outstanding Performance

The FR42-BT is a barcode scanning powerhouse. The megapixel camera allows users to scan 1D and 2D barcodes, including barcodes displayed in a variety of filmed screens, with impressive speed and ease.

  • Reliable and Stable Wireless Communication

Adopting Bluetooth 5.0 dongle which is strong anti-interference and stable to transmit the data.

  • Superior Motion Tolerance

Exceptional motion tolerance (1.8m/s) and large FOV (horizontal 62°, vertical 54°) enhance user experience.

Specifications
Performance
 Image Sensor 1080*1280 CMOS
Illumination White LED
Symbologies 2D: PDF417, QR Code, Data Matrix, Micro QR, MICRO PDF 417, GM CODE, Hanxin Code, Maxicode, Aztec, Code ONE 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, 1D Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code32(Italian Pharma Code), Code 11, MSI-Plessey, Plessey
Resolution ≥3mil
Typical Depth of Field EAN-13: 10mm-130mm (13mil) QR Code: 15mm-110mm (15mil) Code 39: 35mm-80mm (5mil)
Scan Angle Pitch: ±60°, Roll: 360°, Skew: ±65°
Min. Symbol Contrast 15%
Field of View Horizontal 62°, Vertical 54°
Motion Tolerance 1.8m/s
Physical
 Dimensions (L×W×H) 82.0×77.0×146.0mm
Weight 209g
Notification Beep, LED
Interfaces Bluetooth 5.0 BLE and HID, Bluetooth Dongle CDC/KBW/HID-POS
Operating Voltage 5VDC±5%
Environmental
 Operating Temperature -10°C to 55°C (14°F to 131°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5%~95% (non-condensing)
ESD ±12 KV (air discharge); ±8 KV (contact discharge)
Drop 1.5m/4.9ft
Sealing IP52
Battery Charge Temperature 0°C to 45°C (32°F to 113°F)
Wireless
 Radio Technology Bluetooth 5.0
Communication Distance Bluetooth 5.0: 50m/164ft (direct line of sight in the open space)
Battery 2000 mAh lithium-ion battery
Expected Charge Time 5 hours
Expected Battery Life 9.5 hours of continuous operation (scan once per 3 seconds) 16 hours of continuous operation (scan once per 10 seconds)
Certifications
 IEC 62471. RoHS, CE RED (BT only), FCC ID (BT only), IEC 60068-2-31, IEC 60529
Specifications
Performance
 Image Sensor 1080*1280 CMOS
Illumination White LED
Symbologies 2D: PDF417, QR Code, Data Matrix, Micro QR, MICRO PDF 417, GM CODE, Hanxin Code, Maxicode, Aztec, Code ONE 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, 1D Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code32(Italian Pharma Code), Code 11, MSI-Plessey, Plessey
Resolution ≥3mil
Typical Depth of Field EAN-13: 10mm-130mm (13mil) QR Code: 15mm-110mm (15mil) Code 39: 35mm-80mm (5mil)
Scan Angle Pitch: ±60°, Roll: 360°, Skew: ±65°
Min. Symbol Contrast 15%
Field of View Horizontal 62°, Vertical 54°
Motion Tolerance 1.8m/s
Physical
 Dimensions (L×W×H) 82.0×77.0×146.0mm
Weight 209g
Notification Beep, LED
Interfaces Bluetooth 5.0 BLE and HID, Bluetooth Dongle CDC/KBW/HID-POS
Operating Voltage 5VDC±5%
Environmental
 Operating Temperature -10°C to 55°C (14°F to 131°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5%~95% (non-condensing)
ESD ±12 KV (air discharge); ±8 KV (contact discharge)
Drop 1.5m/4.9ft
Sealing IP52
Battery Charge Temperature 0°C to 45°C (32°F to 113°F)
Wireless
 Radio Technology Bluetooth 5.0
Communication Distance Bluetooth 5.0: 50m/164ft (direct line of sight in the open space)
Battery 2000 mAh lithium-ion battery
Expected Charge Time 5 hours
Expected Battery Life 9.5 hours of continuous operation (scan once per 3 seconds) 16 hours of continuous operation (scan once per 10 seconds)
Certifications
 IEC 62471. RoHS, CE RED (BT only), FCC ID (BT only), IEC 60068-2-31, IEC 60529
