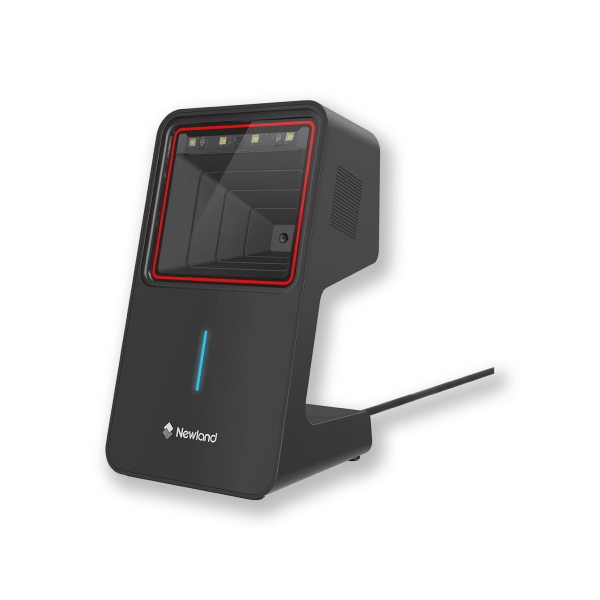

NEWLAND FR42 Desktop Scanner

Original price was: ₹23,000.00.Current price is: ₹12,579.00.

  • 640×480 CMOS
  • Min. Contrast 25%
  • QUICK TO SWITCH MODE
  • White LED, IP52
  • 3 mil @ PCS=90%
Add to Wishlist
Add to Compare
Share it:

  • 1.5m Drop Resistance

The scanner withstands multiple 1.5m drops to concrete (for six sides, one drop per side).

  • IP52-rated Sealing

An IP52-rated seal protects the scanner against the ingress of dust, water and other contaminants

  • IR Trigger

The IR sensor in the scanner enables speedy capture of barcodes presented to it, markedly increasing throughput and productivity.

  • Snappy On-screen Barcode Capture

Armed with Newland’s latest technology, this scanner is capable of reading 1D as well as high-volume 2D barcodes on a screen covered with protective film.

  • Superior Motion Tolerance

Exceptional motion tolerance (2m/s) and large FOV (horizontal 62°, vertical 48°) enhance user experience.

Specifications
Performance
 Image Sensor 640×480 CMOS
Illumination White LED
Symbologies 2D: PDF417, QR Code, Data Matrix, Micro QR, etc.. 1D:Code 11, Code 128, Code 39, Code 32 (Italian Pharma Code), GS1-128, AMI 128, Codabar, Code 93, UPC-A, UPC-E, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-14, ITF-6, Standard 2 of 5, MSI-Plessey, Plessey, GS1 Databar, etc.
Resolution ≥3mil
Typical Depth of Field EAN-13: 5mm-145mm (13mil) QR Code: 5mm-195mm (15mil)
Scan Angle Pitch: ±55°, Roll: 360°, Skew: ±65°
Min. Symbol Contrast 25%
Field of View Horizontal 62°, Vertical 48°
Motion Tolerance 2m/s
Scan Mode Sense mode, continuous mode
Physical
 Dimensions (L×W×H) 82.0×77.0×146.0mm
Weight 246g
Notification Beep, LED
Operating Current 85mA(typical), 92mA(max.)
Interfaces USB
Operating Voltage 5VDC±5%
Light Intensity 0~15000lux(screen barcode)；0~120000lux(paper barcode)
Environmental
 Operating Temperature -20°C to 60°C (-4°F to 140°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5%~95% (non-condensing)
ESD ±12 KV (air discharge); ±8 KV (contact discharge)
Drop 1.5m/4.9ft
Sealing IP52
Certifications
 IEC 62471. RoHS, CE, FCC
