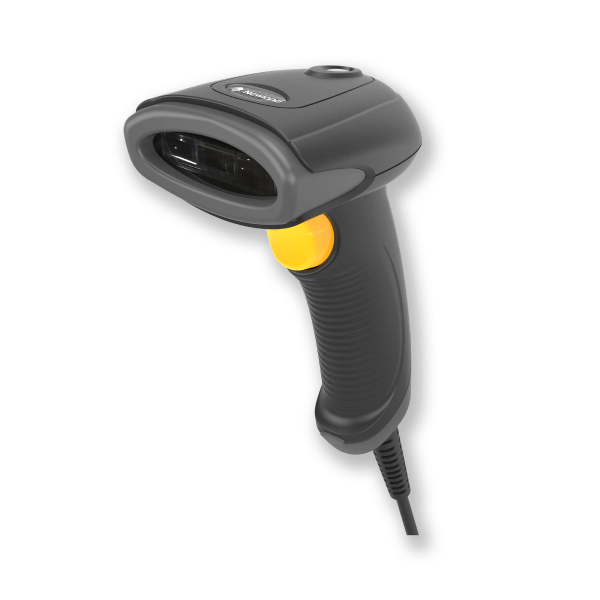

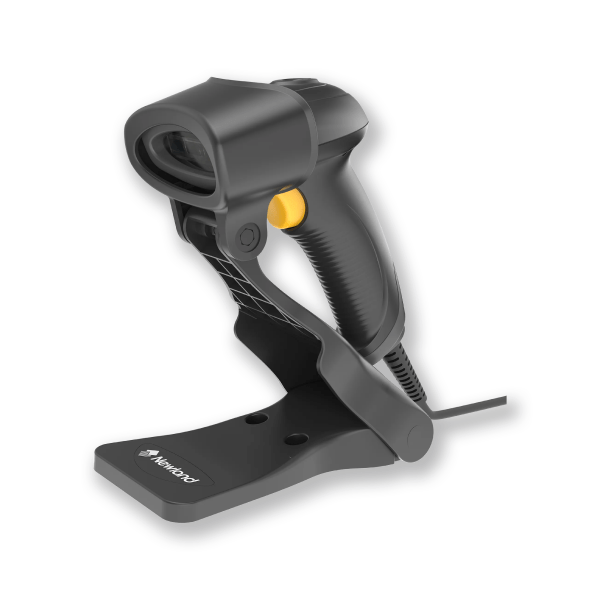

Newland HR11 Plus Handheld Scanner

Original price was: ₹3,499.00.Current price is: ₹2,469.00.

  • 1D CCD Imaging tech.
  • 2500 pixels CCD
  • 330Scan/sec Speed
  • 1.5 M Drop test IP-42
  • 3mil @ PCS=90%
Add to Wishlist
Add to Compare
Share it:

Features

  • Cost-effective Solution

HR11 Plus delivers outstanding scanning performance and excellent user experiences at an affordable price.

  • Durable Construction

The scanner built into an IP42-sealed and drop resistant (1.5m) housing with no moving parts fortifies itself inside and out.

  • Elegant Appearance

Blending ergonomics and aesthetics in its design, the scanner not only ensures operator comfort and productivity for intensive hand-held scanning but also meets the aesthetic needs of the O2O era.

  • Powerful Data Editing Capability

The scanner allows customizing scanned data with ease and provides supporting software to address diverse application needs.

  • Versatile Applicability

Armed with Newland’s latest technology, HR11 Plus is optimized for fast scanning of barcodes printed on paper or displayed on screen to cater to the diverse requirements of emerging applications, including O2O.

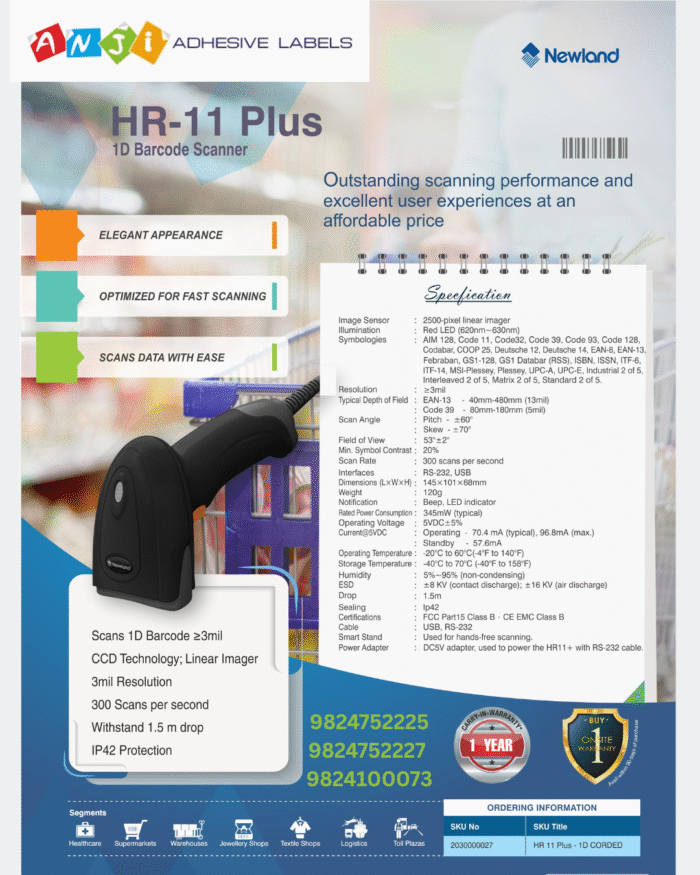

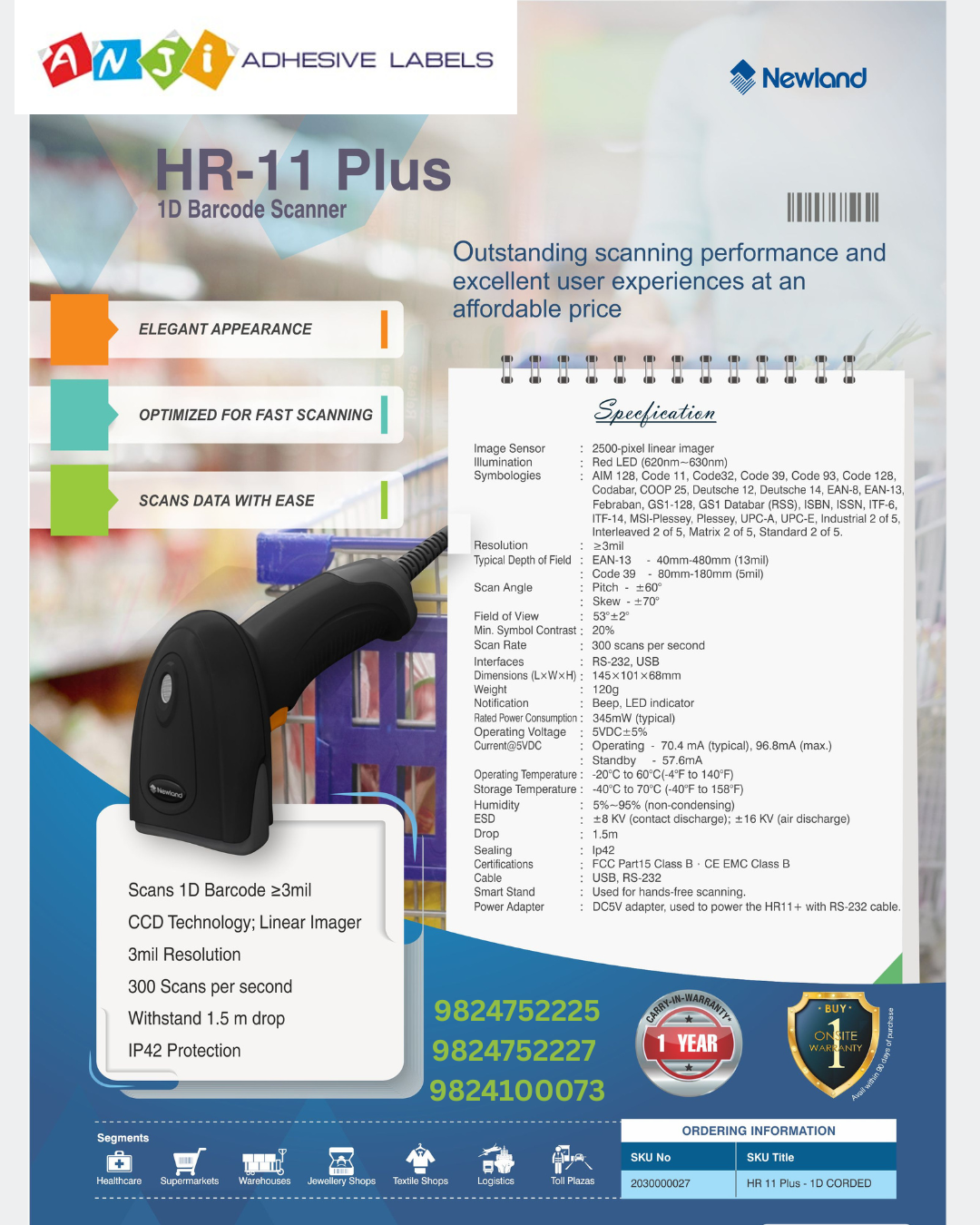

Specifications
Performance
 Image Sensor 2500-pixel linear imager
Illumination Red LED (620nm~630nm)
Symbologies AIM 128, Code 11, Code32, Code 39, Code 93, Code 128, Codabar, COOP 25, Deutsche 12, Deutsche 14, EAN-8, EAN-13, Febraban, GS1-128, GS1 Databar (RSS), ISBN, ISSN, ITF-6, ITF-14, MSI-Plessey, Plessey, UPC-A, UPC-E, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5.
Resolution ≥3mil
Typical Depth of Field 40mm-480mm (13mil) 80mm-180mm (5mil)
Scan Angle Pitch: ±60°, Roll: 360°, Skew: ±70°
Field of View Horizontal: 53°±2°
Min Symbol Contrast 20%
Physical
 Interface RS-232, USB
Operating Voltage 5VDC±5%
Rated Power Consumption 352mW (typical)
Current@5VDC 70.4 mA (typical), 96.8mA (max.) 57.6mA
Dimensions 101(L)×68(W)×145(H)mm
Weight 120g
Notification Beep, LED
Environmental
 Operating Temperature -20°C to 60°C (-4°F to 140°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5%~95% (non-condensing)
ESD ±8 KV (contact discharge); ±16 KV (air discharge)
Drop 1.5m drops to concrete
Sealing IP42
Certifications
 Certificates & Protection FCC Part15 Class B, CE EMC Class B, RoHS
