TVS BS-C103 Platina – 1D Barcode Scanner

Original price was: ₹7,995.00.Current price is: ₹4,249.00.

  • 1D CCD Imaging tech.
  • 2500 pixels CCD
  • 330Scan/sec Speed
  • 1.5 M Drop test
  • 3mil @ PCS=90%
Add to Wishlist
Add to Compare
Share it:

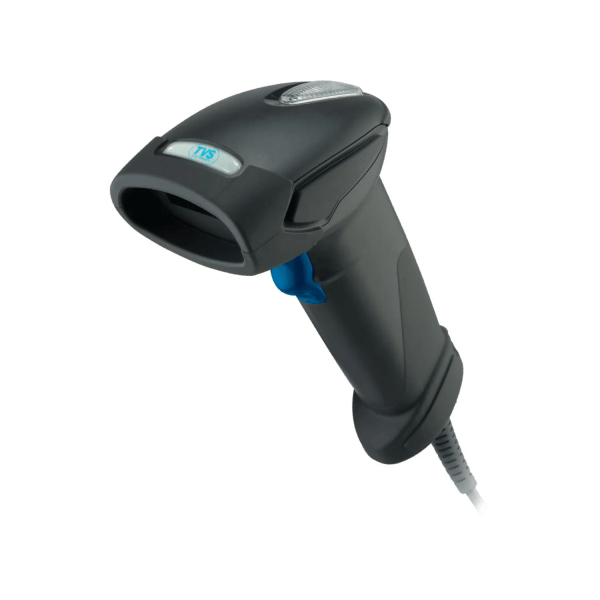

BS-L100 Plus is an affordable handheld Laser scanner that allows the user to easily target the desired bar code and provide complete data transmission by just triggering a button. This Laser scanner fits in various environments starting from small warehouses, offices, and retail shops.
ADVANTAGES :
  1. Reasonable cost and reliable option
  2. Minimal divergence of Laser beam provides high Depth of Focus on Bar codes
  3. Reads all standard 1D bar codes

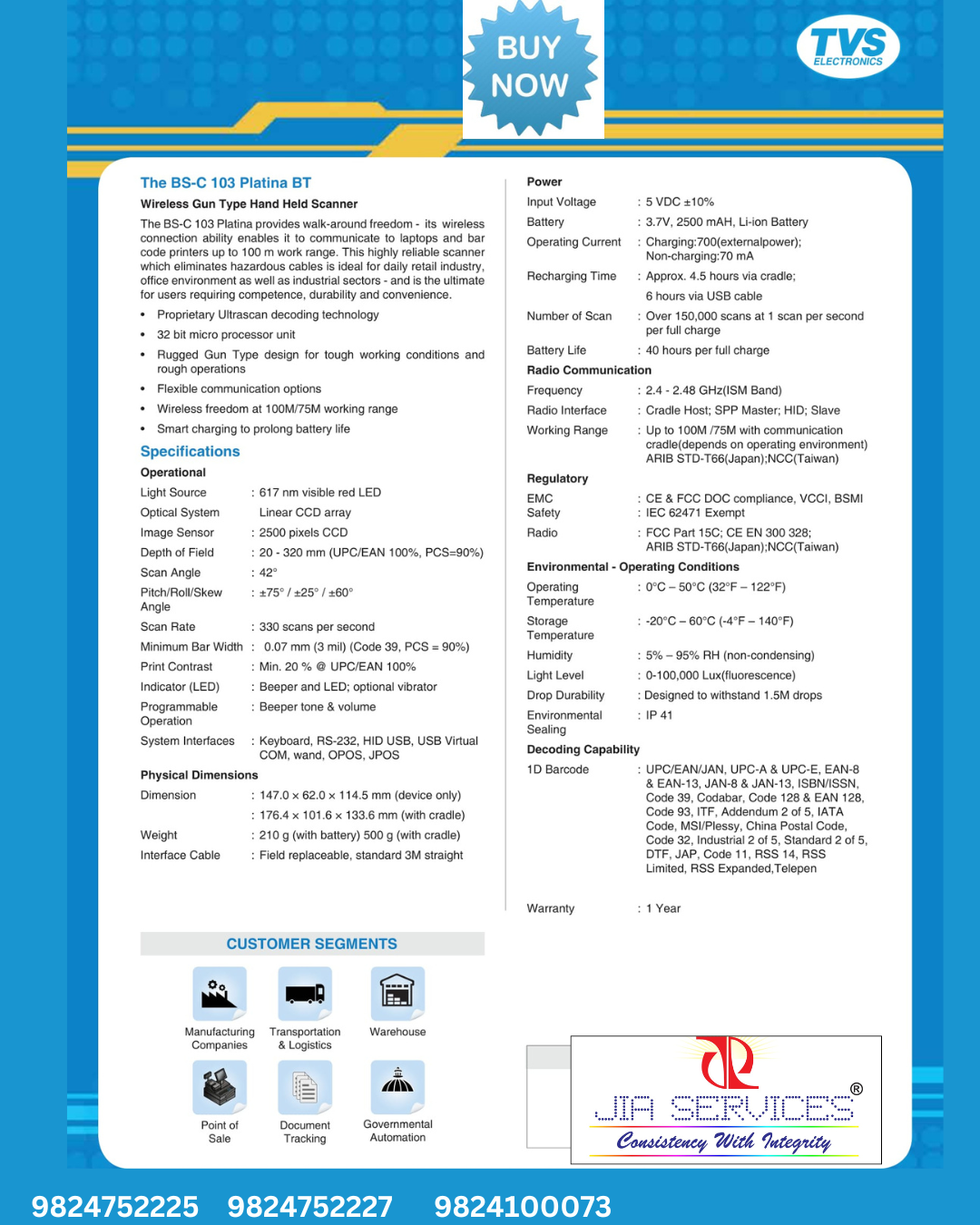

Product Specification

Product Specification Details
Light Source 617 nm visible red LED
Optical System Linear CCD array
Image Sensor 2500 pixels CCD
Depth of Field 20 – 320 mm (UPC/EAN 100%, PCS=90%)
Scan Angle 42°
Pitch / Roll / Skew angle 75° / 25° / 60°
Scan Rate 330 scans per second
Minimum Bar Width 0.07 mm (3 mil) (Code 39, PCS = 90%)
Print Contrast Min. 20 % @ UPC/EAN 100%
Indicator (LED) Beeper and LED; optional vibrator
Programmable Operation Beeper tone & volume
System Interfaces Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
Dimension 147.0 × 62.0 × 114.5 mm (device only)
Weight 120 g (device only)
Interface Cable Field replaceable, standard 2M straight
Input Voltage 5 VDC ±5%
Power Consumption 0.6 watts
Operating Current 110 mA typical
EMC CE & FCC DOC compliance, VCCI, BSMI
Safety IEC 62471 Exempt
Operating Temperature 0°C – 50°C (32°F – 122°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
Humidity 5% – 95% RH (non-condensing)
Light Level 0-100,000 Lux(fluorescence)
Drop Durability Designed to withstand 1.5M drops
Environmental Sealing IP 41
1D Barcode UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF, Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, DTF, JAP, Code 11, RSS 14, RSS Limited, RSS Expanded
Warranty 1 Year
